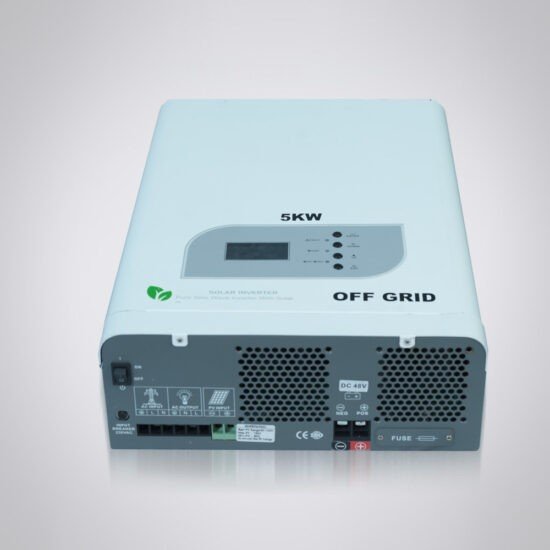

OFF GRID INVERTER
IE-OFFGRID
Infinity Energy Off-Grid Inverters are engineered to provide complete energy independence for residential, commercial, and remote applications where grid power is unavailable or unreliable. Built with advanced power electronics and intelligent control systems, these inverters efficiently convert solar DC power into clean, stable AC electricity to run essential loads without interruption.
Battery Type
OFF GRID INVERTER
Specifications
Showing only valid specification rows (auto cleaned)
General
Inverter TypeOff-Grid Inverter
Application RangeResidential / Commercial / Industrial
TopologyTransformer / Transformerless (Model Dependent)
Phase ConfigurationSingle Phase / Three Phase
Rated Power Range500 VA – 500 kVA
Input SourceBattery / Solar PV / Grid / DG (Model Dependent)
Output Voltage220 / 230 / 240 Vac (Single Phase), 380 / 400 / 415 Vac (Three Phase)
Output Frequency50 Hz / 60 Hz
Voltage Regulation±1%
Transfer Time≤ 10 ms
WaveformPure Sine Wave
Efficiency≥ 90%
Power Factor0.8 – 1.0
Battery TypeLead Acid / Tubular / Gel / Lithium-ion
Battery Voltage Range12 Vdc – 800 Vdc (Model Dependent)
Charging MethodSmart Multi-Stage Charging
Solar CompatibilityMPPT / PWM (Model Dependent)
Bypass ModeAutomatic / Manual (Model Dependent)
Cooling MethodNatural / Forced Air Cooling
Noise Level≤ 60 dB
Operating Temperature-10°C to +50°C
Storage Temperature-20°C to +70°C
Relative Humidity0–95% RH, non-condensing
Installation TypeWall Mounted / Floor Standing
DisplayLCD / LED Display
Communication InterfacesRS485 / WiFi / CAN / Ethernet (Optional)
Protection FeaturesOverload, Short Circuit, Over-Temperature, Battery Protection
Compliance StandardsIEC 62109, IEC 61683
Warranty2–5 Years (Model Dependent)
