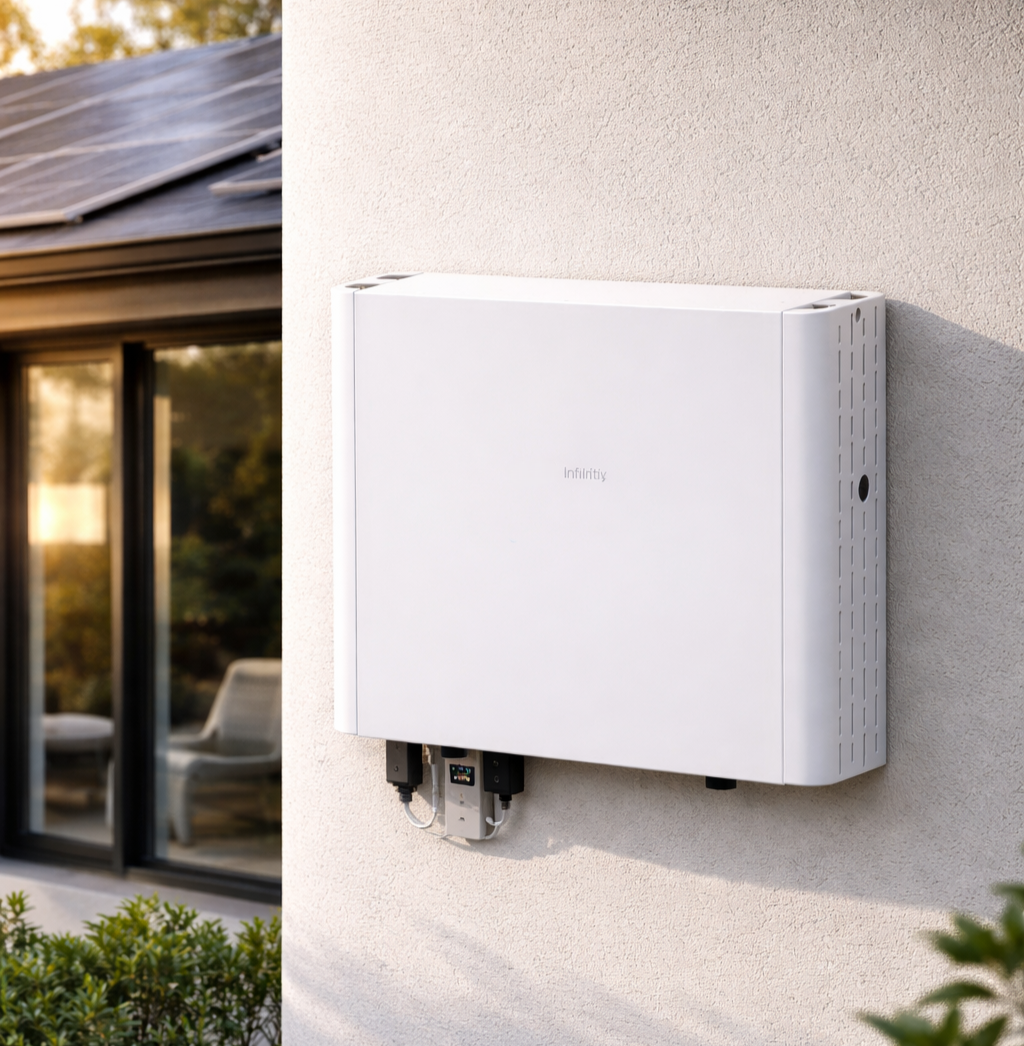

Infinity Wall-Mounted Energy Storage System is a compact and space-saving solution for reliable energy storage.

IE-LVW — INVERTER BATTERY — Infinity Energy

INVERTER BATTERY

IE-LVW

The Infinity Wall-Mounted Energy Storage System offers an efficient and modern approach to energy storage for residential and small commercial applications. Its wall-mounted design saves space while providing reliable backup power and improved energy management. The system supports up to 8 batteries in parallel, allowing flexible scalability as energy demands increase. With an expandable storage capacity of up to 41 kWh, it ensures long-lasting and dependable performance. Compatible with renewable energy sources like solar panels, it enables smarter and more sustainable energy usage. Suitable for both indoor and outdoor installation, it combines safety, durability, and clean design.

Battery Type

Inverter

Capacity

15.00 kWh

Voltage Range

48-384

Rated Voltage

48.00 Vdc

Specifications

Showing only valid specification rows (auto cleaned)

General

System ConfigurationModular / Rack Mount / Cabinet Based
Cooling MethodNatural Convection / Forced Air Cooling
Ingress ProtectionIP20 / IP54 / IP65 (Model Dependent)
Operating Temperature-10°C to +55°C
Storage Temperature-20°C to +60°C
Relative Humidity0–95% RH, non-condensing
Altitude≤ 2000 m (derating above)
Communication InterfacesCAN / RS485 / Ethernet
Communication ProtocolsCANBus / Modbus RTU / Modbus TCP
MonitoringLocal Display / Inverter Monitoring / EMS
Installation TypeWall Mounted / Rack Mounted / Floor Standing
Safety StandardsIEC 62619, IEC 62040, UN38.3
Warranty5 Years

DC Side

Battery TypeLithium Iron Phosphate (LFP)
Cell TypePrismatic
Nominal DC Voltage48 Vdc / 96 Vdc / 192 Vdc / 384 Vdc
Voltage Range42 – 58 Vdc (48V System)
Rated Capacity50 Ah – 300 Ah (Module Dependent)
Rated Energy2.4 kWh – 15 kWh per Module
Charge / Discharge Current0.5C / 1C
Depth of Discharge (DoD)≥ 95%
Cycle Life≥ 6000 cycles @ 80% DoD
Battery Management System (BMS)Integrated Smart BMS
Protection FunctionsOvercharge, Over-discharge, Over-current, Short Circuit, Over-temperature

AC Side

Compatible Inverter TypeSingle Phase / Three Phase Hybrid or PCS Inverter
Rated AC Power3 kW – 500 kW (System Dependent)
Nominal AC Voltage230 Vac (1Ø) / 400 Vac (3Ø)
AC Frequency50 Hz / 60 Hz
Power Factor≥ 0.99
Total Harmonic Distortion (THDi)≤ 3%
AC ProtectionOver / Under Voltage, Over Frequency, Short Circuit
