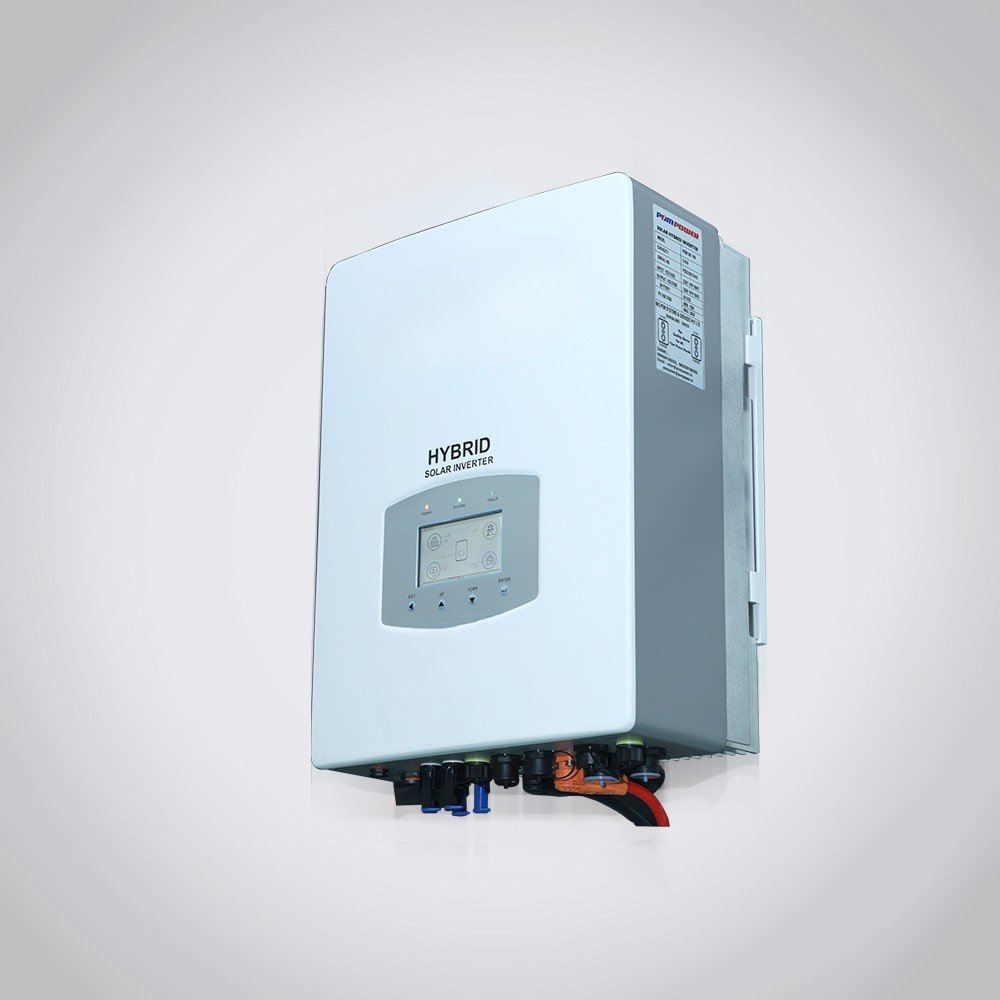

HYBRID INVERTER
IE-LV/HB
The hybrid inverter intelligently prioritizes solar energy to power connected loads and charge batteries, switching automatically to stored energy or grid power when required. Its low voltage design enhances system safety, improves efficiency, and ensures stable operation under varying load and grid conditions.
Battery Type
LV HYBRID INVERTER
Specifications
Showing only valid specification rows (auto cleaned)
General
Inverter TypeSingle Phase Low Voltage Hybrid Inverter
Operating ModeOn-Grid / Off-Grid / Hybrid
Phase ConfigurationSingle Phase Input / Single Phase Output
Rated Power Range3 kW – 10 kW
Battery Voltage Range40 – 400 Vdc
Battery TypeLithium-ion / Lead Acid
Battery ConfigurationLow Voltage Battery System
TopologyTransformerless
Efficiency≥ 96%
Transfer Time≤ 10 ms
Power Factor0.8 lagging ~ 1.0
Charging MethodIntelligent Battery Charging
Grid Feed-inSupported
Anti-Islanding ProtectionYes
Cooling MethodNatural Convection / Forced Air Cooling
Noise Level≤ 45 dB
Ingress ProtectionIP65
Operating Temperature-20°C to +60°C (derating above 45°C)
Relative Humidity0–95% RH, non-condensing
Maximum Operating Altitude≤ 4000 m (derating above 2000 m)
DisplayLCD Display / LED Indicators
Communication InterfacesWiFi / Ethernet / RS485 / CAN
Communication ProtocolsModbus TCP / Modbus RTU
Remote MonitoringMobile App / Web Portal
Installation TypeWall Mounted
Compliance StandardsIEC 62109, IEC 61727, IEC 62116, IEEE 1547
Warranty5 Years Standard (Extendable)
