UPS
IE-HV/UPS

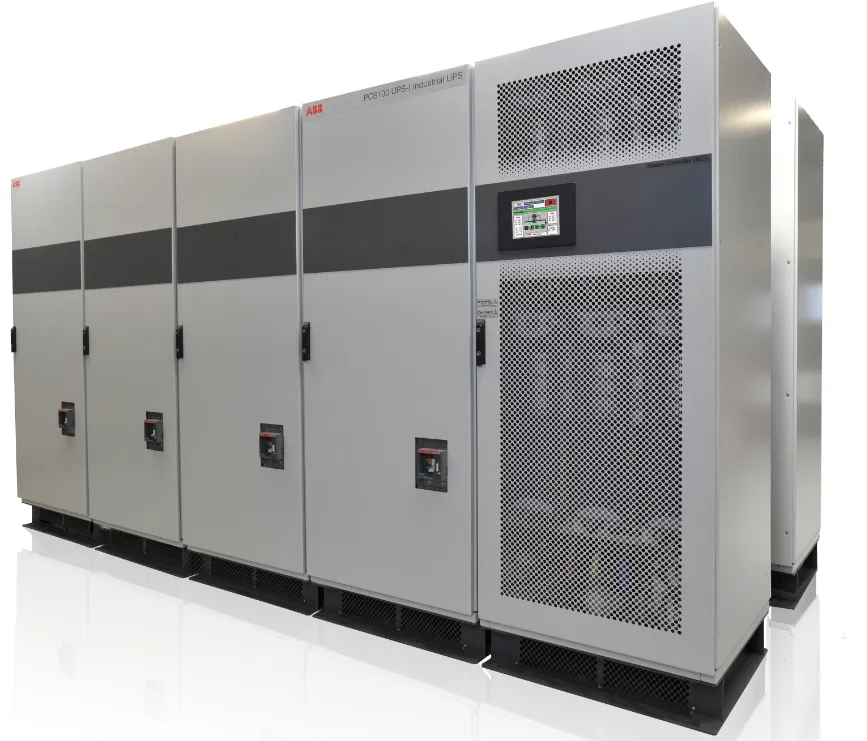

The Infinity Energy High Voltage 3-Phase UPS is engineered to provide robust, uninterrupted, and high-quality power protection for large-scale commercial and industrial applications. Built for high-capacity and high-load environments, this UPS ensures continuous power availability for mission-critical systems where downtime is not an option.
Battery Type
Three Phase UPS
Specifications
Showing only valid specification rows (auto cleaned)
General
UPS TypeHigh Voltage Three Phase UPS

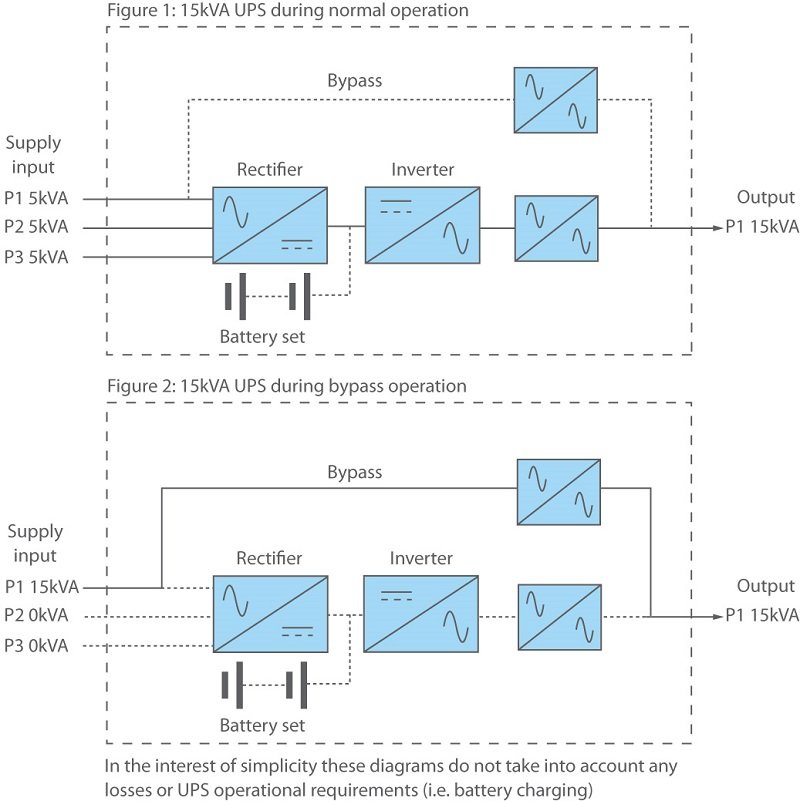

TopologyOnline Double Conversion
Phase ConfigurationThree Phase Input / Three Phase Output
Rated Power Range100 kVA – 800KVA
Input Voltage380 / 400 / 415 Vac
Output Voltage380 / 400 / 415 Vac
Input Frequency50 Hz / 60 Hz
Output Frequency50 Hz / 60 Hz
Voltage Regulation±1%
Transfer Time0-3 ms
Efficiency≥ 95%
Power Factor≥ 0.99
DC Bus Voltage384 Vdc / 480 Vdc / 540 Vdc (model dependent)
Battery TypeVRLA / Lithium-ion
Battery ConfigurationExternal Battery Bank
Charging MethodHigh Power Intelligent Charger
Bypass TypeStatic Bypass + Manual Maintenance Bypass
Cooling MethodForced Air Cooling
Noise Level≤ 65 dB
Operating Temperature0°C to +40°C
Storage Temperature-25°C to +70°C
Relative Humidity0–95% RH, non-condensing
Installation TypeFloor Standing
DisplayTouch LCD Display
Communication InterfacesRS485 / USB / SNMP / Dry Contact
Protection FeaturesOverload, Short Circuit, Over-Temperature, Battery Protection
Compliance StandardsIEC 62040-1, IEC 62040-2, IEC 62040-3
Warranty2 Years Standard (Extendable)
