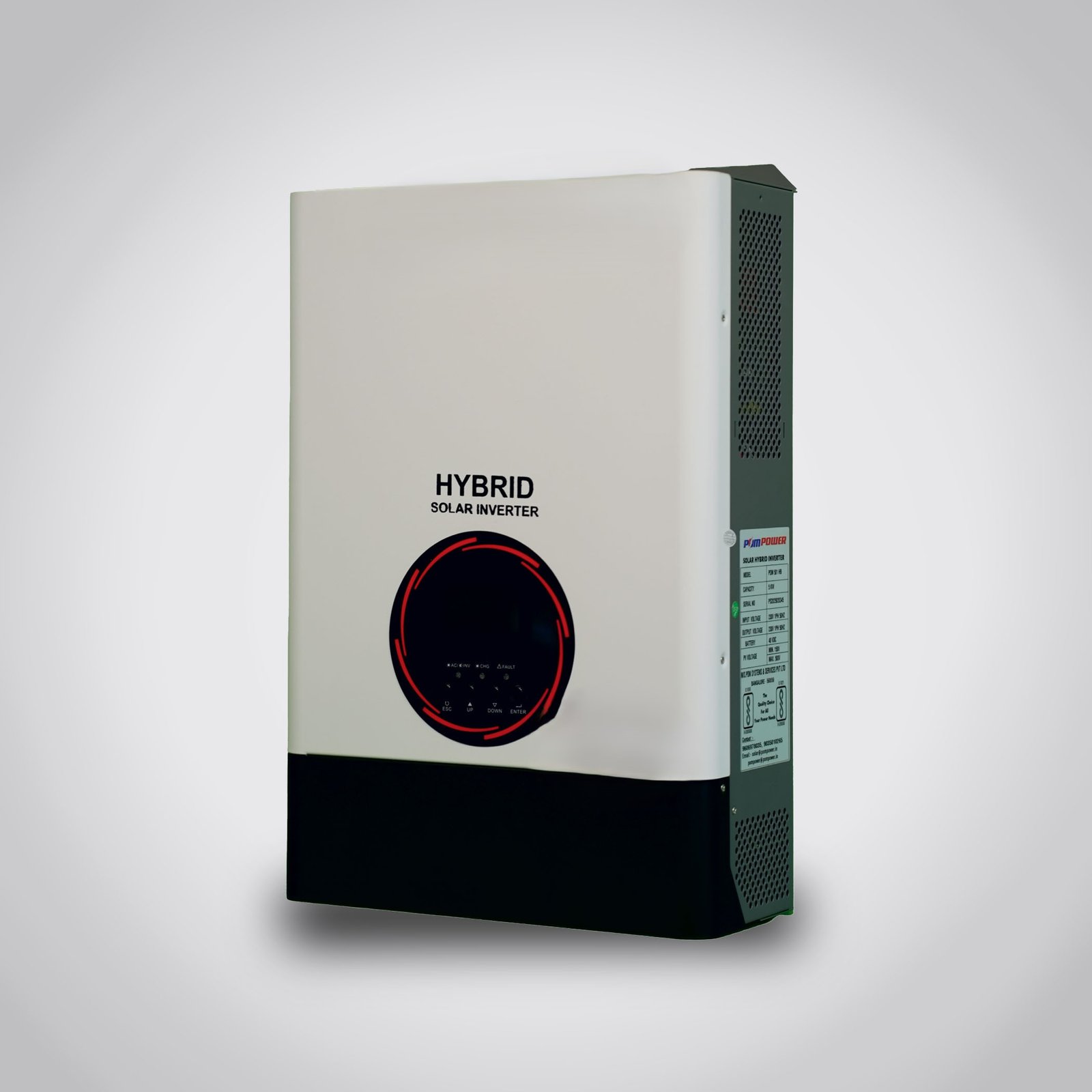

HYBRID INVERTER
IE-HV/HB
The hybrid inverter intelligently prioritizes solar energy to power connected loads and charge batteries, switching automatically to stored energy or grid power when required. Its low voltage design enhances system safety, improves efficiency, and ensures stable operation under varying load and grid conditions.
Battery Type
HV HYBRID INVERTER
Specifications
Showing only valid specification rows (auto cleaned)
General
Inverter TypeThree Phase High Voltage Hybrid Inverter
System TypeOn-Grid + Battery Hybrid
Phase ConfigurationThree Phase Input / Three Phase Output
TopologyTransformerless
Rated Power Range10 kW – 100 kW
Battery Voltage Range600 – 1000 Vdc
Battery TypeLithium-ion (LFP / NMC)
Battery ConfigurationHigh Voltage Battery Bank
Grid InteractionGrid-Tied with Backup Capability
Operating ModesOn-Grid / Off-Grid / Backup / Peak Shaving
Energy ManagementSelf-Consumption, Time-of-Use, Export Limitation
Seamless Transfer Time≤ 20 ms
Efficiency≥ 97.5%
Power Factor-1 lagging ~ +1 leading
Cooling MethodForced Air / Liquid Cooling
Noise Level≤ 65 dB
Ingress ProtectionIP55
Operating Temperature-25°C to +60°C (derating above 45°C)
Storage Temperature-30°C to +70°C
Relative Humidity0–95% RH, non-condensing
Maximum Operating Altitude≤ 4000 m (derating above 2000 m)
Installation TypeWall Mounted / Floor Standing
DisplayTouch LCD Display
Communication InterfacesEthernet / RS485 / CAN / WiFi
Communication ProtocolsModbus TCP / Modbus RTU
Remote MonitoringSCADA / Web Portal / Mobile App
Protection FeaturesOver/Under Voltage, Overload, Short Circuit, Anti-Islanding, Battery Protection
Compliance StandardsIEC 62109, IEC 61727, IEC 62116, IEEE 1547, EN 50549
Grid Code ComplianceUtility / DISCOM Approved
Warranty5 Years Standard (Extendable)
