UPS BATTERY
IE-HVE

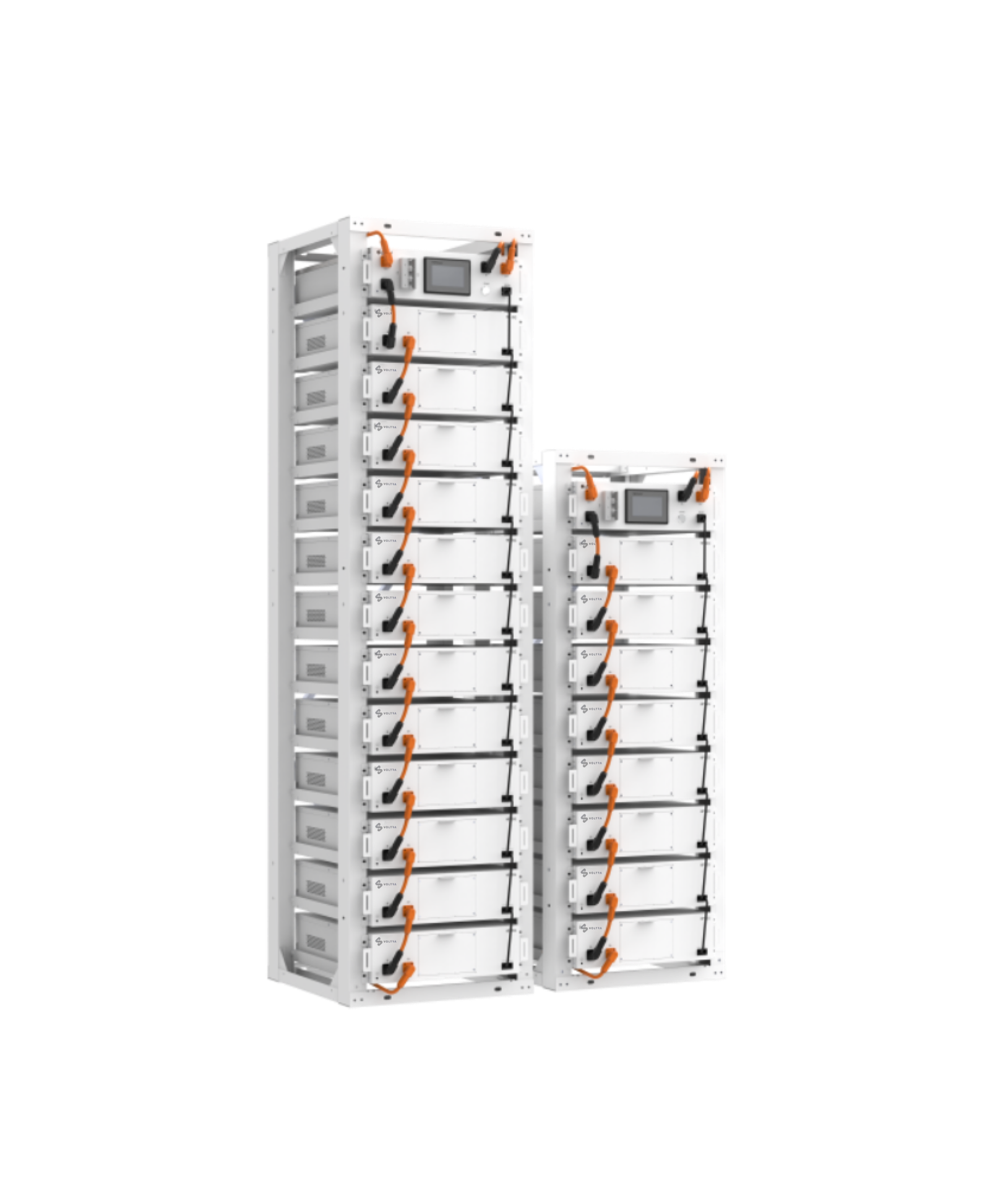

The Infinity High Voltage Series is designed with a 3U standard modular structure for scalable and efficient energy storage. It supports multiple modules connected in series and multi-cluster parallel systems, adapting to diverse power needs. Suitable for villas, farms, and small commercial & industrial applications. The system delivers stable performance with high safety and reliability. Its modular architecture allows easy expansion and future upgrades. Infinity provides a green, low-carbon, and dependable energy solution for modern energy demands.
Battery Type
UPS
Capacity
5015.00 kWh
Rated Power
2.50 MW
Voltage Range
1165 – 1498
Rated Voltage
1331.20 Vdc
Specifications
Showing only valid specification rows (auto cleaned)
General
Efficiency≥ 94%
Charge / Discharge Rate0.5 P
Depth of Discharge (DoD)95% (25±2°C)
Cycle Life≥ 8,000 times
Switching Time100 ms
ConnectivityEthernet / RS485
Ingress RatingIP55
CoolingChiller + liquid cooling
Operating Temperature-25°C to 55°C
Humidity0–95% RH, non-condensing
Noise80 dB
Altitude≤ 2,000 m (derating above)
Fire SafetyNOVEC1230 / Aerosol + water
Dimensions (W × D × H)6,058 × 2,550 × 2,896 mm
DC Side
Cell TypeLFP 314Ah Prismatic
PACK52.24 kWh / 1P52S
Battery System5015 kWh
Voltage Range1165 – 1498 Vdc
Rated Voltage1331.2 Vdc
AC Side
Rated Power2.5 MW
Max. Power2.5 MVA
THDi≤ 3%
DC Ratio0.5% Ipn
Nominal Voltage690 Vac
Power Factor-1 lagging ~ +1 leading
Nominal Frequency50 Hz / 60 Hz
