BESS

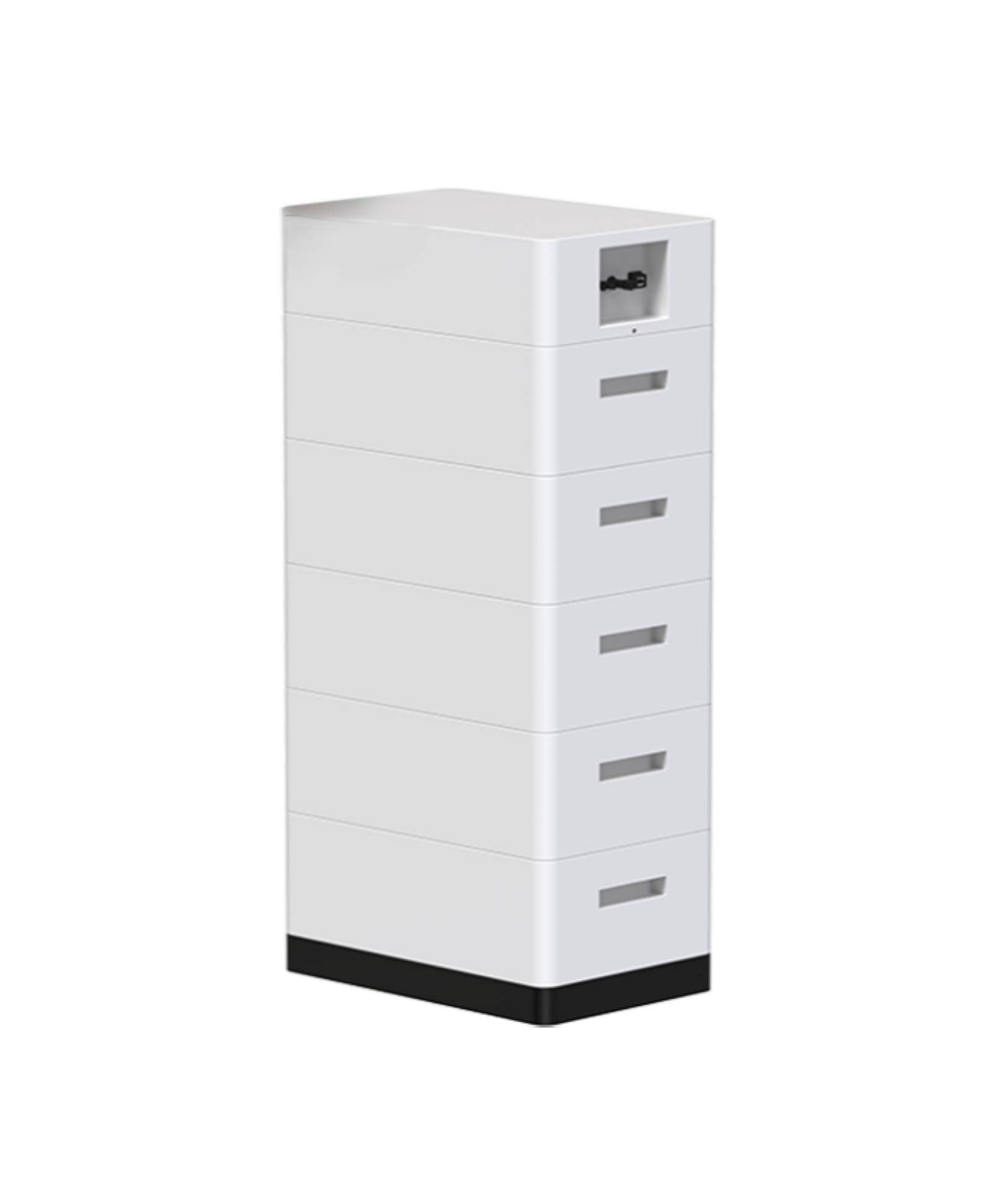

IE-BESS
It has the advantages of high energy density, easy transportation & installation, and high protection level. The DC output can combine with PCS-boost container to realize AC network connection at medium/high voltage . It can be applied to the generation and grid side.
Battery Type
Energy Storage System
Specifications
Showing only valid specification rows (auto cleaned)
General
System TypeBattery Energy Storage System (BESS)
ApplicationResidential / Commercial / Industrial / Utility Scale
Energy Capacity Range5 kWh – 100 MWh
Power Rating Range3 kW – 100 MW
Battery ChemistryLFP / NMC / LTO (Model Dependent)
System ConfigurationModular Rack / Cabinet / Containerized
Nominal DC Voltage48 Vdc – 1500 Vdc
Depth of Discharge (DoD)Up to 95%
Round Trip Efficiency≥ 90%
Cycle Life≥ 6,000 – 10,000 Cycles (25°C)
Charge / Discharge Rate0.25C – 1C
Battery Management System (BMS)Integrated BMS with Cell & Rack Level Monitoring
Energy Management System (EMS)Optional / Integrated (Grid, PV, DG, Load Control)
Power Conversion System (PCS)Bidirectional Inverter (Optional / Integrated)
Grid ConnectivityOn-Grid / Off-Grid / Hybrid
Response Time< 100 ms
Cooling MethodNatural Air / Forced Air / Liquid Cooling
Fire Suppression SystemAerosol / NOVEC 1230 / Water Mist
Ingress ProtectionIP20 (Indoor) / IP54 / IP55 (Outdoor)
Operating Temperature-20°C to +55°C
Operating Altitude≤ 3000 m (derating above 2000 m)
Relative Humidity0–95% RH, non-condensing
Installation TypeIndoor / Outdoor / Containerized
Monitoring & CommunicationEthernet / RS485 / CAN / Modbus / SCADA
Remote MonitoringCloud Based / SCADA Compatible
Compliance StandardsIEC 62619, IEC 62933, IEC 61000, UL 1973, UL 9540
Safety StandardsUN 38.3, NFPA 855
Warranty5 – 15 Years (Energy / Throughput Based)
